Get now US $1582.70 4 axis pillar type mini cnc machine 3040 Ball Screw Table Column Type metal engraving machine can u

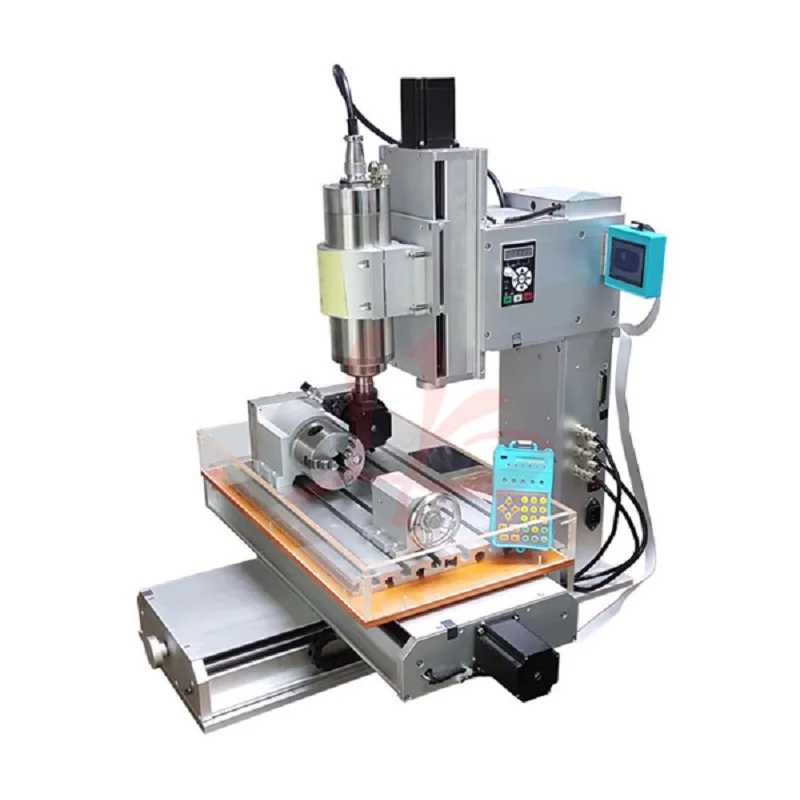

4 axis pillar type mini cnc machine 3040 Ball Screw Table Column Type metal engraving machine can u

[32868143920] CNC Router machine CNC 3040 1500w Engraving Drilling and Milling Machine CNC Router Specifications: Model 3040 4axis CNCMachine Productdemention 520(H)X660(L)X580(W)mm Effectiveworkarea 300x400x(150)mm Precisionballscrew 1605 XYZrailmaterial Hardchromeshaft XYraildiameter 20mm Zraildiameter 16mm XYZaxistorque 57*78250OZ/IN(2.2N/CM) 4th 57*56 4th transmissionratio 1:6 Repeatpositioningaccuracy 0.01mm Workingprecision 0.02mm Processingspeed 0-4000mm/Min A-axis rotationspeed 0-180rpm/min XYtablemaximumload 50kg XY+A tablemaximumload 13kg Tailgatematerial Stainlesssteel SwitchingPowerSupply Integrated24V350W Spindlepower 1500Wwater-cooledfrequencyspindle Spindleconverter 1500W InputPower 220V/110Vpowersupply OutputCurrent Drive4.5A(peak5A) Drivemotor 57*78steppermotors(two-phase4wire) NetWeight 60kg GrossWeight 95kg Outsidepacking 80*70*85 (cm) CNC Router Features: 1.Integrated high-speed microcomputer intelligent control chip,can be equipped with external LCD monitor with hands, automatic detection of computer controlled automatic shield handle motion control functions, can simultaneously track digital recording of computer data and handle mobile data control 2.The computer keeps track of the path, you can run once the computer processing of the data record-keeping process automatically repeats offline processing operation. 3.Manually move the processing to save recorded track record, manually move the machine data and automatically reprocessed run manually move the path. 4.Manual data input processing path and enter the path to run automatically. 5You can automatically complete the XYZ axis or Z axis of the knife, without complicated computer software operation control 6.Max 5A stepper motor drive current, eight-speed adjustable. 7.Up to 16 segments, higher accuracy, run more smoothly. 8.Overload over-current over-temperature protection function, automatic semi-flow control, fully protect your computer and peripherals. 9.Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region. 10.Closed optical isolation, dual-stage signal processing, and fully protect your computers and devices. Why buyfrom us : CE approved. Video support. English manual available. Mach 3 software send with the machine as a CD. Can engrave material which hardness below 45. Easy operating: It can work with 3 axis / 4 axis / 5 axis, just as you like ! Integrated high-speed micro computer intelligent control chip. With external digital LCD monitor and handwheel controller. The working process can be tracked, recorded in the digital LCD monitor automatically. Mach 3 software Built in frequencey converter and without controller box. Higher precision because: Cross slippery platform design rather than gantry design. Aluminum base sheet is heavy which can make sure no vibration when work. With auto-checking function. 1500w water-cooled spindle. Ball screw
