Only US $1490.72 5 axis CNC Router 3040 1500W milling machine high precision woodworking carving machine

by my machine is BIG on November 08, 2016 in cnc, machine, router

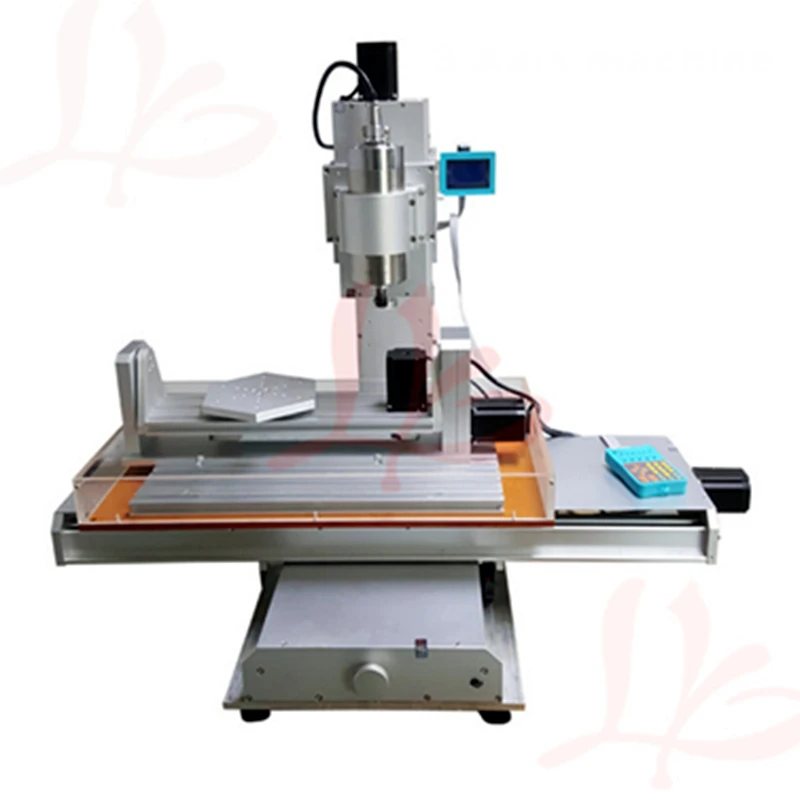

5 axis CNC Router 3040 1500W milling machine high precision woodworking carving machine

[32872467772] 5 axis CNC Router 3040 Engraver / milling machine, high precision woodworking carving machine Product parameters: 1: Product Dimensions height 715 * 699 * length width 610 (MM) 2: Effective stroke 300 * 400 * (150) (MM) 3:1605 precision ball screw 4: XY rail diameter 20 plus hard chrome shaft diameter 16 Z-axis rail and hard chrome shaft. 5: XYZ3 axis stepper 57 * 78 250 OZ / IN (2.2N/CM) 6: Repeat positioning accuracy 0.01mm, precision 0.02MM 7: Processing speed 0-4000MM / minute, A-axis B-axis rotation speed of 0-180 rpm / min 8: X-axis table maximum load 50KG, 80 four axis chuck Maximum load 30KG 50 Chuck four axis maximum load 15KG, five axis table maximum load 15KG. 9: Stainless steel tailgate 10: Integrated 24V350W Switching Power Supply 11:800 W water-cooled frequency spindle Industry 12:1500 W Industrial spindle drive 13:4 shaft professional driver board, with LCD digital display and handle, offline programming and path manually duplicate records offline processing Product Features: 1: Integrated high-speed microcomputer intelligent control chip, can be equipped with external LCD monitor with hands, automatic detection of computer controlled automatic shield handle motion control functions, can simultaneously track digital recording of computer data and handle mobile data control 2: The computer keeps track of the path, you can run once the computer processing of the data record-keeping process automatically repeats offline processing operation. 3: Manually move the processing to save recorded track record manually move the machine data and automatically reprocessed run manually move the path. 4: Manual data input processing path and enter the path to run automatically 5: You can automatically complete the XYZ axis or Z axis of the knife, without complicated computer software operation control 6: Max 5A stepper motor drive current, eight-speed adjustable. 7: Up to 16 segments, higher accuracy, run more smoothly. 8: Overload over-current over-temperature protection function, automatic semi-flow control, fully protect your computer and peripherals 9: Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region. 10: closed optical isolation, dual-stage signal processing, and fully protect your computers and devices. Electrical Properties: Output Current Drive 4.5A (peak 5A ) Driven approach Bipolar constant current PWM drive output Drive motor 57*78 stepper motors ,two -phase 4 wire stepper motor )
